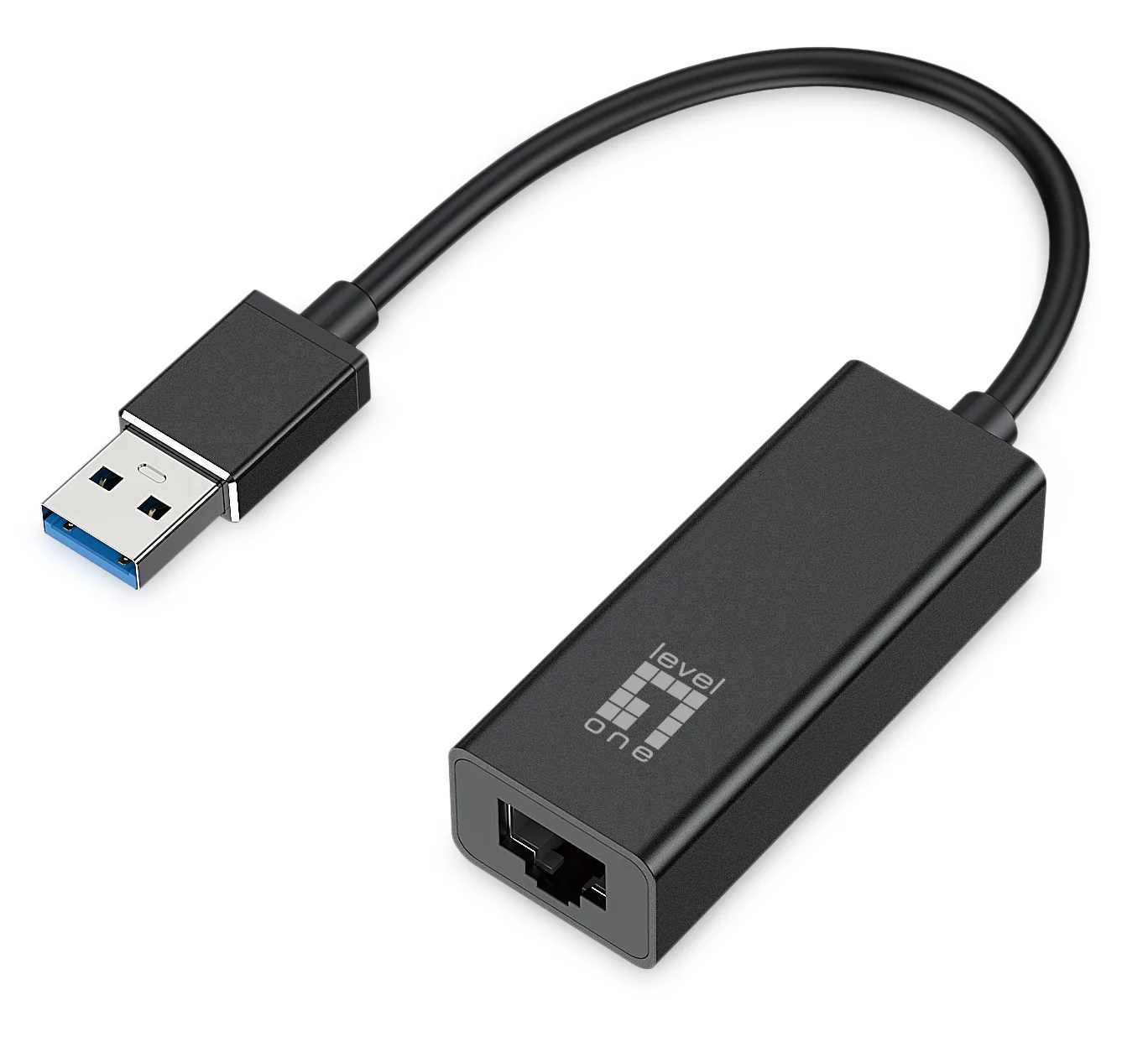

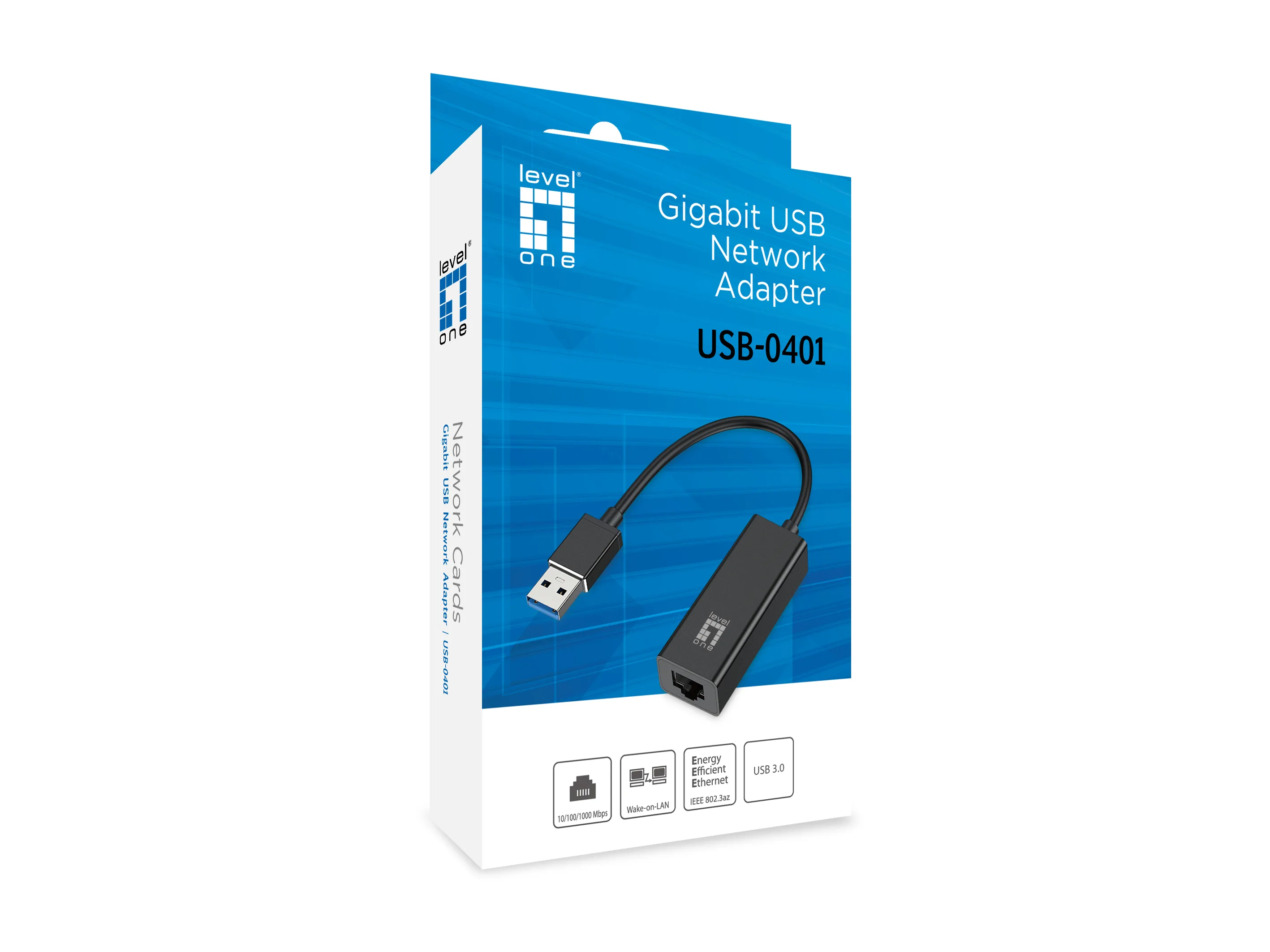

LevelOne USB-0401 Adaptador USB 3.0 a Gigabit Ethernet
Referencia: 400012021
31,85 €
IVA incluidoCaracterísticas
Datos técnicos
- Modelo
- USB-0401
- Características
- ● Supports all USB 3.0 power saving modes (U0, U1, U2, and U3) ● Supports USB Super/High/Full Speed modes with Bus-power or Self-power device auto-detect capability ● High performance packet transfer rate over USB bus using proprietary burst transfer mechanism (US Patent Approval) ● Supports dynamic cable length detection and dynamic power adjustment Green Ethernet (Gigabit mode only) ● Supports parallel detection and automatic polarity correction ● Supports IPv4/IPv6 packet Checksum Offload Engine (COE) to reduce CPU loading, including IPv4 IP/TCP/UDP/ICMP/IGMP & IPv6 TCP/UDP/ICMPv6 checksum check & generation ● Supports TCP Large Send Offload V1 ● PHY loop-back diagnostic capability ● Support Wake-on-LAN Function ● Supports Bonjour wake-on-demand ● Single 25MHz clock input from either crystal or oscillator source
- Homologaciones y cumplimiento normativo
- CE, RoHS
- Color
- Negro
- Interfaz de host
- USB-A
- Tipo de tarjeta de red
- Cableado
- Velocidad de datos
- 1Gbps
- Marco jumbo (KB)
- 4
- Alimentación
- USB power
- Chipset
- AX88179
- Estándar
- ● IEEE 802.3: 10Base-T (Ethernet) ● IEEE 802.3u: 100Base-TX (Fast Ethernet) ● IEEE 802.3ab: 1000Base-T (Gigabit Ethernet) ● IEEE 802.3x Flow Control (full-duplex flow control) ● IEEE 802.3az Energy Efficient Ethernet ● IEEE 802.1P layer 2 Priority Encoding and Decoding ● IEEE 802.1Q VLAN tagging and 2 VLAN ID filtering; received VLAN Tag (4 bytes) can be stripped off or preserved
- Temperatura de funcionamiento
- 0°C ~ 50°C
